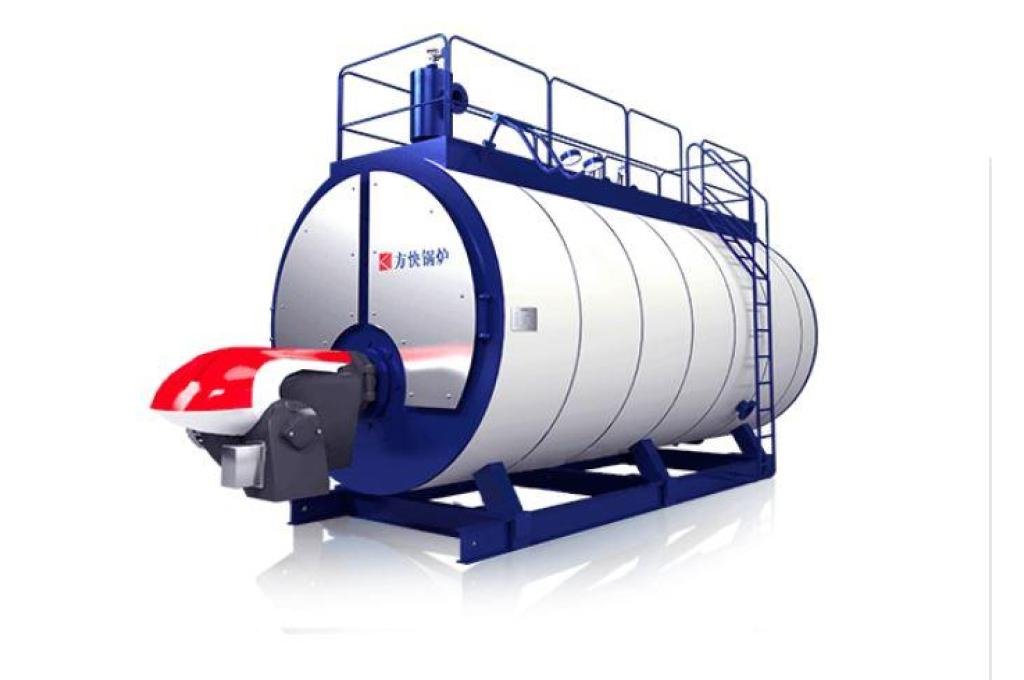

Product Type: Gas (Oil) Fired Split Hot Water Boiler
Rated Thermal Power: 0.7–14MW
Rated Thermal Efficiency: 91–96%
Working Pressure: ≤1.25MPa
Available Fuel: Natural Gas, Light Oil, and Other Clean Fuels
The Gas (Oil) Fired Split Hot Water Boiler is an advanced heating solution designed for industrial, commercial, and large-scale heating applications. Featuring a downstream three-pass shell structure, this boiler ensures complete fuel combustion inside a large combustion chamber, significantly improving fuel utilization, thermal efficiency, and operational stability.
Built with advanced low-nitrogen combustion technology, automatic control systems, and intelligent safety protection, the boiler delivers efficient, environmentally friendly, and reliable heating performance for modern energy requirements.
The FANGKUAI Gas (Oil) Fired Split Hot Water Boiler is engineered to provide:
High thermal efficiency
Low emissions operation
Stable hot water supply
Intelligent automatic control
Strong adaptability to changing loads
Safe and reliable operation
It is widely used in:
Central heating systems
Hotels and commercial building
| Parameter | Specification |
|---|---|
| Boiler Type | Split Hot Water Boiler |
| Thermal Power | 0.7–14MW |
| Thermal Efficiency | 91–96% |
| Working Pressure | ≤1.25MPa |
| Fuel Type | Natural Gas / Light Oil |
| Control System | Fully Automatic |
| Structure | Three-Pass Shell Design |
| Model | Thermal Power (MW) | Efficiency | Fuel | Dimensions (mm) | Weight (T) |
|---|---|---|---|---|---|
| CWNS0.7-95/70-Y.Q | 0.7 | 91–96% | Gas/Oil | 3370×1660×1830 | 2.32 |
| CWNS1.4-95/70-Y.Q | 1.4 | 91–96% | Gas/Oil | 3450×1820×2030 | 3.04 |
| CWNS2.1-95/70-Y.Q | 2.1 | 91–96% | Gas/Oil | 4200×1940×2420 | 5.04 |
| CWNS2.8-95/70-Y.Q | 2.8 | 91–96% | Gas/Oil | 5230×1940×2340 | 5.24 |
| CWNS4.2-95/70-Y.Q | 4.2 | 91–96% | Gas/Oil | 6550×2340×3640 | 10.08 |
| CWNS5.6-95/70-Y.Q | 5.6 | 91–96% | Gas/Oil | 7580×2550×3780 | 16.4 |
| WNS7-1.0/95/70-Y.Q | 7.0 | 91–96% | Gas/Oil | 7630×2730×4410 | 24.72 |
| WNS14-1.0/95/70-Y.Q | 14.0 | 91–96% | Gas/Oil | 9340×3660×4690 | 46.42 |
