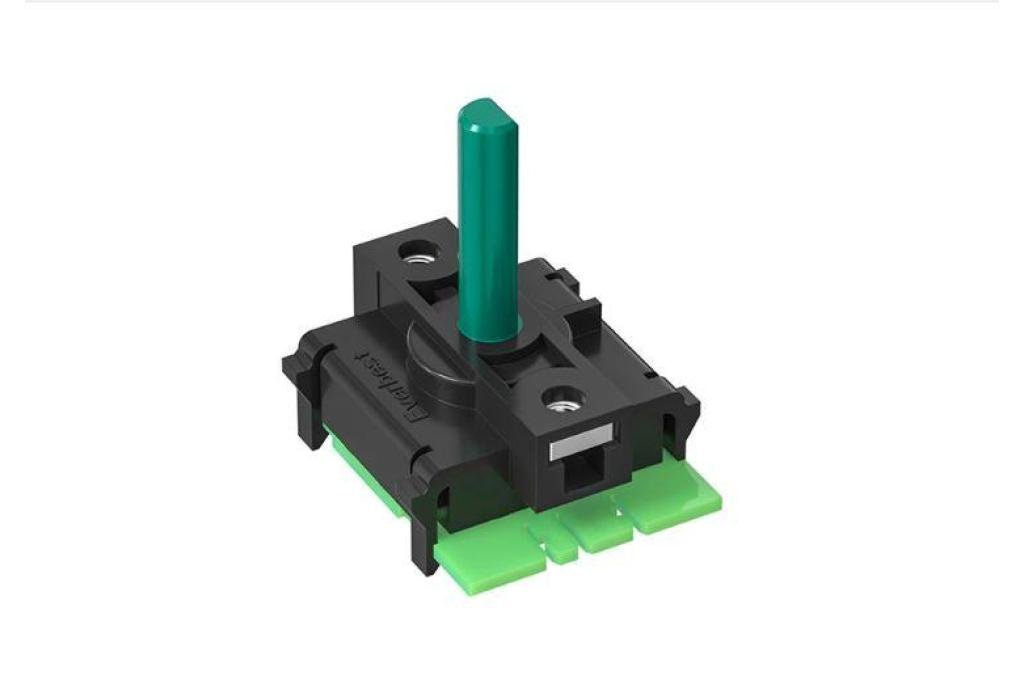

SR27AP Rotary Encoder Switch – Multi-Function Incremental Control Switch

The SR27AP Rotary Encoder Switch is a high-precision electronic control component that combines rotary encoding and push-button functionality in a compact design. Engineered for reliable signal output and smooth operation, the SR27AP is widely used in automotive electronics, household appliances, industrial control systems, consumer electronics, and smart devices.

Featuring distinct output signals for clockwise and counterclockwise rotation, integrated push-switch functionality, and multiple customizable output options, the SR27AP provides an ideal solution for advanced user interface and control applications.

Key Features of SR27AP Rotary Encoder Switch

Dual-Direction Signal Output

The SR27AP generates different output signals depending on rotational direction.

• Independent clockwise and counterclockwise outputs

• Accurate position detection

• Reliable signal transmission

• Enhanced control precision

Integrated Push-Button Function

Combines rotary control with switch functionality.

• Built-in push switch

• Pressing stroke: 0.7mm

• Maximum pressing force: 1000gf.cm

• Supports menu selection and confirmation functions

Smooth Rotational Performance

Designed for excellent tactile feedback and precise operation.

• Rotational torque: 700–1500gf.cm

• Stable rotational feel

• Improved user experience

• Accurate control adjustment

Long Service Life

Built to withstand frequent operation.

• Rotational life up to 30,000 cycles

• Durable internal structure

• Reliable long-term performance

• Reduced maintenance requirements

Product Specifications

Product Advantages

Multi-Function Design

Integrates rotary and push-switch functions into one compact component.

• Saves installation space

• Simplifies product design

• Reduces component count

• Improves user interaction

Flexible Output Configurations

Customizable according to application requirements.

• Gold finger output available

• Connector output available

• Wiring harness output available

• Easy integration into various electronic systems

High Reliability

Manufactured with quality materials and precision engineering.

• Stable electrical performance

• Consistent signal accuracy

• Long operational lifespan

• Suitable for demanding applications
