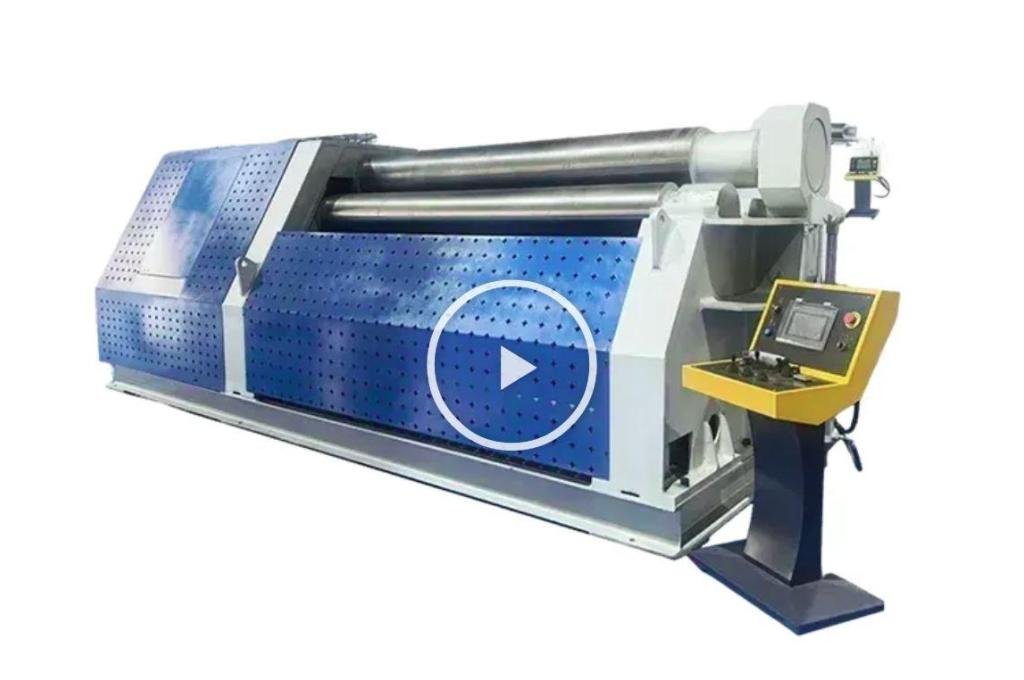

The W12NC 4-Roller Plate Rolling Machine is a versatile metal plate bending and forming solution designed for small, medium, and heavy-duty fabrication applications. Its four-roll configuration provides accurate plate alignment, efficient pre-bending, reliable traction, and high repeatability.
Suitable for manufacturing, construction, petroleum, chemical engineering, boiler production, shipbuilding, metal structures, pressure vessels, and machinery manufacturing, the W12NC series offers an efficient combination of precision, automation, and durable performance.
The four-roller design enables efficient forming of metal plates into cylindrical, arc-shaped, and tapered workpieces within the machine's specified working range.
Key advantages include:
Four-roller configuration for accurate plate positioning and forming
Plate edge pre-bending capability for reduced flat-end length
High working efficiency and repeatable results
Suitable for steel, aluminum, and other metal plates
Excellent traction even when processing thin sheets
Easy plate alignment using the side roll as a stopper
High degree of process automation
Reduced dependence on cranes and manual handling
Easy cone rolling and cone pressing
Precise edge handling for tack welding directly on the machine
Good calibration capability for apple-shaped and pear-shaped workpieces
Hydraulic tilting support for convenient workpiece unloading
The W12NC four-roll plate rolling machine uses two lower rolls, one upper roll, and one side roll to clamp, position, pre-bend, and form metal plates.
The plate can be aligned accurately against the side roll before bending. The permanent clamping of the workpiece between the upper and lower rolls provides reliable traction throughout the forming process.
The machine's four-roll configuration helps minimize unbent plate ends while improving production efficiency. Angled side-roll positioning and optional cone-bending accessories also enable efficient production of conical workpieces.
The optional CNC controller uses a mobile PLC control system with a touch interface. A digital display shows the current position of the side rolls, helping operators monitor and adjust the bending process accurately.
The built-in program library can store up to 100 finished-product programs. Operators can enter product dimensions, allowing the system to automatically calculate the corresponding bending program.
The hydraulic cylinders control the movement of the working rolls and provide precise bending adjustments.
The sealed hydraulic design is intended to provide reliable operation while minimizing the need for frequent maintenance and adjustment. It supports stable roll positioning during demanding plate-forming operations.
