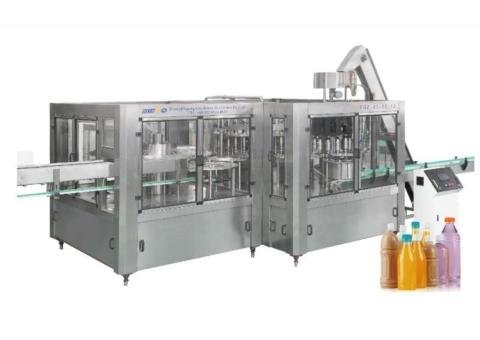

RGZ Series 2000-36000 BPH Juice, tea beverage hot filling three-in-one unit

RGZ Series 2000–36,000 BPH Hot Filling Juice, Tea & Beverage 3-in-1 Unit    Product Overview

The RGZ Series Hot Filling 3-in-1 Machine is an advanced integrated solution designed for juice, tea, functional beverages, and purified water production. It combines bottle washing, hot filling, and capping into a single fully automatic system.

This machine is specially engineered for high-temperature filling applications, ensuring product safety, longer shelf life, and stable production efficiency.

Key Features & Advantages

• 3-in-1 Integrated System
  Combines rinsing, hot filling, and capping in one compact production line.

• Hot Filling Technology
  Suitable for juice, tea, and functional beverages, ensuring sterilization and extended shelf life.

• Food-Grade Stainless Steel Construction
  All contact parts use 304/316 stainless steel for hygiene and durability.

• High Precision Filling
  Liquid level accuracy up to ≤ ±2mm, ensuring consistent product quality

Machine Structure

1. Washing System

• Air conveyor bottle transfer system

• High-pressure stainless steel spray nozzles

• Durable 304/316 stainless steel grippers

• Efficient washing pump for long service life

2. Hot Filling System

• High-precision stainless steel filling valves

• Suitable for hot juice and tea filling processes

• Fine-polished tank with no dead corners

• Circulating liquid tank with float-level control

• Stable gravity / micro-negative pressure filling system

3. Capping System

• Constant magnetic torque capping technology

• High sealing performance (airtight up to 99.99%)

• Automatic stop when bottle is missing

• Low defect rate (≤0.2%)

Technical Specifications

Application Scope

Ideal for:

• Fruit juice production lines

• Tea beverage bottling plants

• Functional drink manufacturing

• Purified and mineral water filling (hot fill compatible)

Bottle Compatibility

• Bottle Diameter: Φ50 – Φ100 mm

• Bottle Height: 150 – 320 mm

• Bottle Volume: 330 – 1500 ml

• Gas Source Pressure: 0.6 MPa
