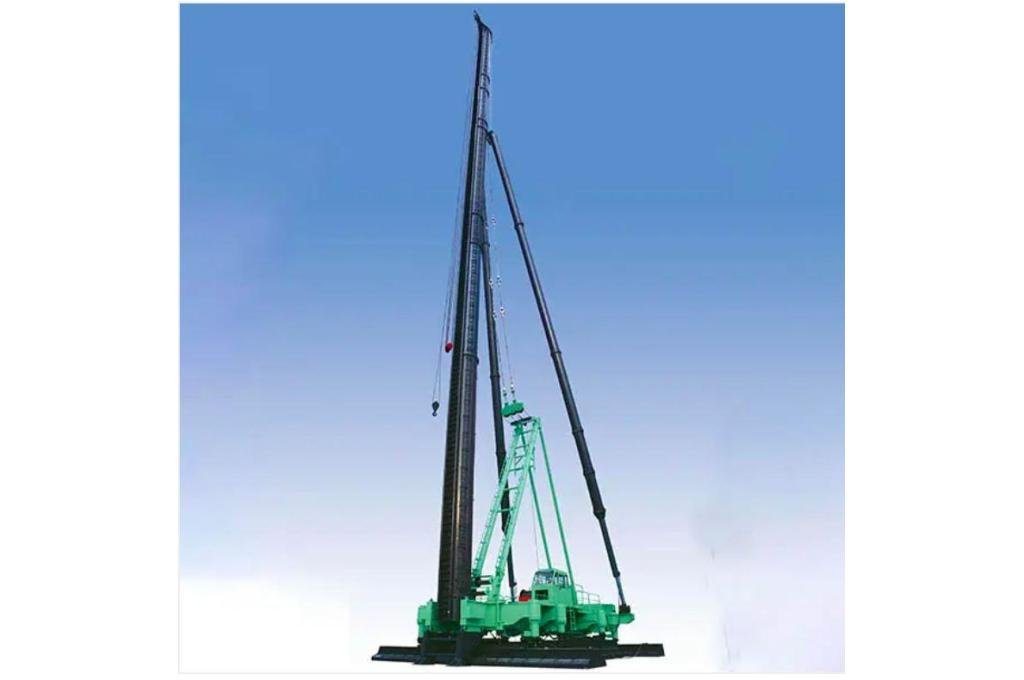

JB180 Hydraulic Walking Piling Rig

Product Overview

The JB180 Hydraulic Walking Piling Rig is a heavy-duty foundation construction machine engineered for demanding piling applications. Featuring an advanced integration of hydraulic, electrical, and mechanical systems, the JB180 delivers exceptional stability, precision, and operational efficiency across a wide range of ground conditions.Designed with independent intellectual property rights and recognized with multiple patented technologies, this piling rig is widely used in SMW (Soil Mixing Wall) construction, deep foundation reinforcement, bridge construction, highways, ports, metro projects, and high-rise building foundations. Its modular structure, intelligent electro-hydraulic control system, and self-erecting design significantly reduce setup time while maximizing productivity on-site.

Key Features

• Heavy-duty hydraulic walking piling rig for large foundation projects

• Compatible with SMW soil mixing systems, diesel pile hammers, and pre-bored precast piling equipment

• Maximum leader length up to 60 meters

• Self-erecting design eliminates the need for an auxiliary service crane

• Advantages



Superior Stability & Performance

The reinforced leader, heavy-duty platform, and robust walking system provide excellent stability during deep piling operations. The machine is designed to handle long augers and large diesel hammers while maintaining reliable performance under heavy loads.

Advanced Electro-Hydraulic Control

The JB180 utilizes electro-hydraulic proportional technology for both main and auxiliary winches, providing:

• Variable speed control

• Smooth lifting operations

• Precise positioning

• Reliable locking at any operating speed

Premium hydraulic components from internationally recognized brands ensure long service life and dependable operation.

Technical Specifications

Hydraulic Winch Performance

Main Hydraulic Winch

• Maximum single rope pulling force: 100 kN

• Rope speed: 0–21 m/min

• Rope diameter: 22 mm

• Drum capacity: 835 m

Auxiliary Hydraulic Winch

• Maximum single rope pulling force: 110 kN

• Rope speed: 0–20 m/min

• Rope diameter: 22 mm

• Drum capacity: 300 m
