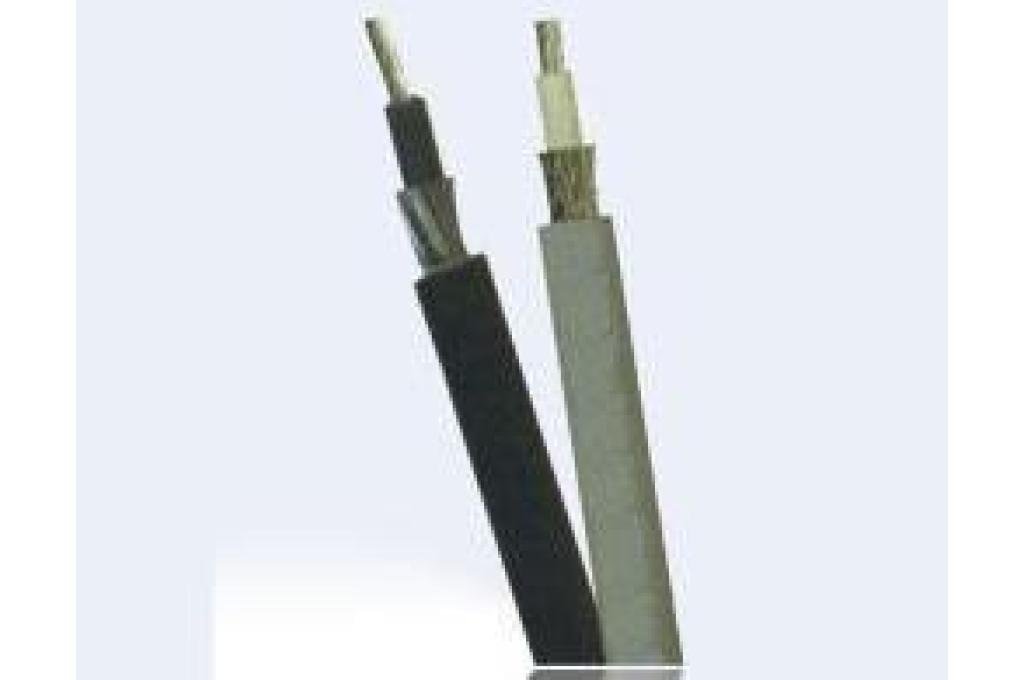

UL3573 High Voltage Silicone Lead Wire

UL3573 High Voltage Silicone Lead Wire – Product Information

Product Overview

The UL3573 High Voltage Lead Wire is specially designed for electronic ignition systems and high-voltage applications, including gas stoves, oil burners, and other electrical ignition equipment. It provides excellent protection, reliable insulation, and stable performance during operation, installation, and maintenance.

Technical Specifications

• Rated Voltage: 10KV

• Test Voltage: 21KV

• Operating Temperature Range: -60°C to +200°C

• Outer Diameter Tolerance: ±0.20mm

• Conductor Material: Tinned copper

• Insulation Material: Silicone rubber

• Jacket Material: Silicone rubber

• Braiding Material: Fiberglass

Available Colors

• White

• Blue

• Red

• Black

• Brown

• Yellow

• Green

Applications

Suitable for:

• Gas stove ignition systems

• Oil burner ignition systems

• Electronic ignition equipment

• High-voltage electrical appliances

• Industrial heating equipment

• Other high-temperature electrical applications

Product Features

• Excellent high-voltage insulation performance

• Superior heat resistance up to 200°C

• Flexible silicone rubber construction

• Strong mechanical protection with fiberglass braiding

• Reliable tinned copper conductor for efficient conductivity

• Resistant to aging and environmental stress

• Designed for safe and durable operation
