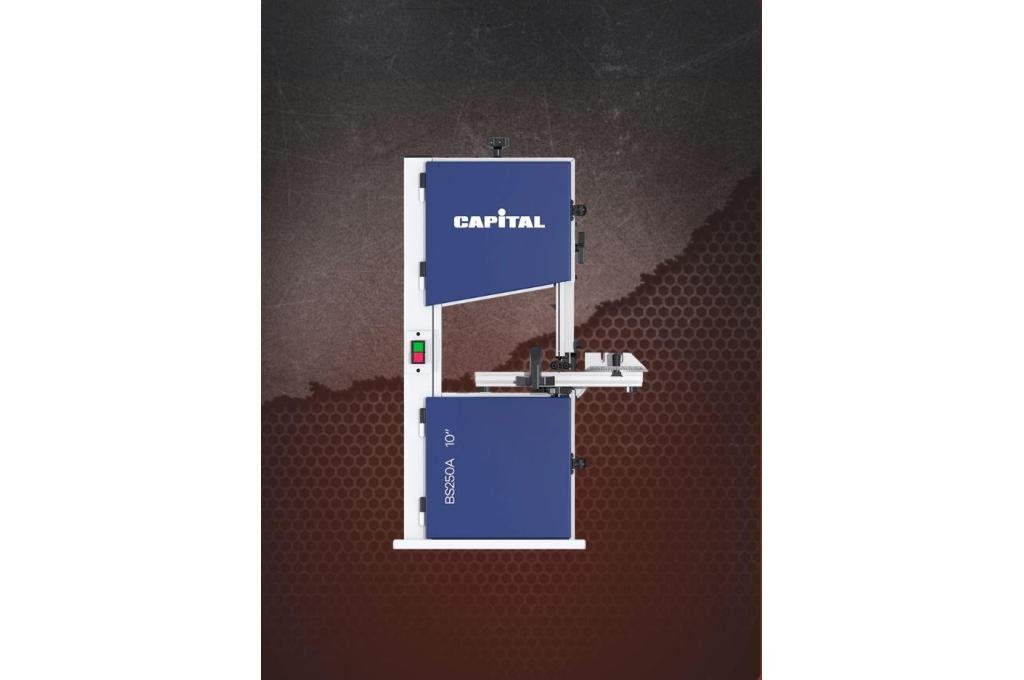

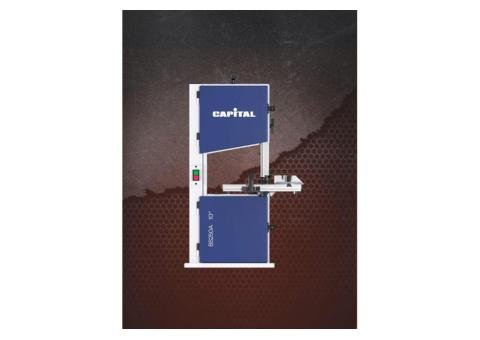

BS250A 10" Woodworking Bandsaw

Compact 10-Inch Bandsaw for DIY Woodworking, Hobby Workshops & Small Wood Shops

The BS250A 10" Woodworking Bandsaw is a versatile and space-saving cutting solution designed for hobbyists, DIY woodworkers, educational workshops, and small woodworking businesses. Combining precision cutting performance with a compact footprint, this bandsaw is ideal for users who require reliable cutting capacity without the space requirements of larger industrial machines.Powered by a durable 1/3 HP motor, the BS250A delivers smooth and accurate cutting for hardwood, softwood, plywood, and other woodworking materials. Its 250mm bandwheel, 120mm maximum cutting depth, and 245mm maximum cutting width provide ample capacity for a wide range of woodworking applications, including curved cuts, straight ripping, resawing, and craft projects.Designed for user convenience, the machine features a 0°–45° tilting cast iron worktable, a sturdy rip fence, precision bearing blade guides, a large blade tension adjustment knob, and an integrated dust extraction port for a cleaner and safer working environment. The compact design also makes transportation and storage easy, making it a popular choice for home workshops and educational woodworking facilities.

Key Features

  • Compact 10-inch woodworking bandsaw design

  • Powerful and energy-efficient 1/3 HP motor

  • Large cast iron worktable for enhanced stability

  • Table tilts from 0° to 45° for bevel cutting applications

  • Precision bearing blade guides for improved cutting accuracy

  • Includes 50mm high rip fence for straight cutting operations

  • Large blade tension knob for quick blade adjustment

Applications

  • Woodworking workshops

  • DIY woodworking projects

  • Furniture making

  • Craft and hobby work

  • Educational and vocational training centers

  • Small-scale production facilities

  • Home workshops and garages

Technical Specifications

Specification Value
Voltage/Frequency 230V/50Hz or 120V/60Hz
Motor Power 1/3 HP
Blade Length 1790 mm
Blade Width 6–13 mm
Blade Speed 700 m/min
Maximum Cutting Depth 120 mm
Maximum Cutting Width 245 mm
Table Size 350 × 318 mm
Table Tilt 0°–45°
Bandwheel Diameter 250 mm
Dust Collection Port 63.5 mm (Inside Diameter)
Package Dimensions 840 × 330 × 410 mm
Net Weight 31 kg
Gross Weight 34.5 kg
Container Loading Capacity 210 pcs / 20' Container

Product Advantages

The BS250A bandsaw offers an excellent balance of cutting performance, safety, and affordability. Its heavy-duty cast iron table minimizes vibration, while precision blade guidance ensures smooth cuts and improved blade life. The compact footprint makes it particularly suitable for workshops with limited space, without compromising functionality or cutting accuracy.
