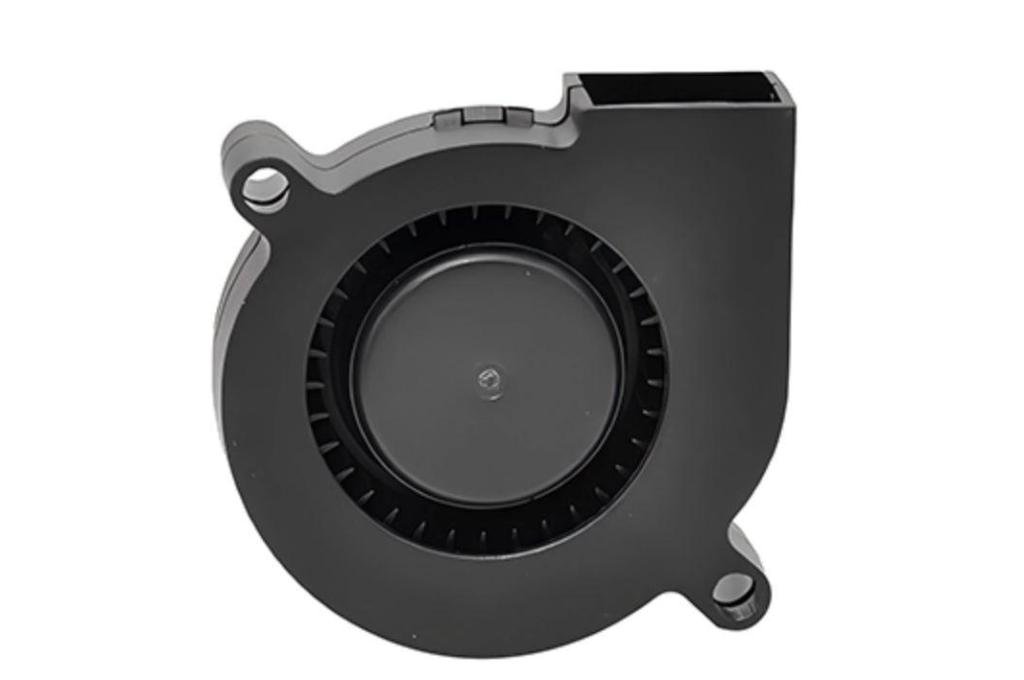

The WELLSUNFAN WD05015 DC Blower Fan is a compact, high-performance centrifugal cooling fan designed to deliver efficient airflow and high static pressure for electronic equipment, industrial systems, and OEM applications. Measuring 50 × 50 × 15 mm, this blower fan provides reliable thermal management while maintaining low power consumption and long service life.
Constructed with UL94V-0 flame-retardant plastic, the WD05015 is available with ball bearing or sleeve bearing options and supports advanced features such as PWM speed control, FG speed monitoring, RD lock rotor detection, and IP56 protection. Its customizable design makes it an excellent choice for manufacturers seeking dependable and flexible cooling solutions.
Compact 50 × 50 × 15 mm (2.0 × 0.6 inch) centrifugal blower fan
Durable UL94V-0 flame-retardant plastic frame and impeller
High airflow with excellent static pressure
Available with ball bearing or sleeve bearing
Long service life of up to 70,000 hours
| Specification | Details |
|---|---|
| Product Model | WD05015 |
| Fan Type | DC Blower Fan |
| Dimensions | 50 × 50 × 15 mm (2.0 × 0.6 in) |
| Frame Material | UL94V-0 Flame-Retardant Plastic |
| Impeller Material | UL94V-0 Flame-Retardant Plastic |
| Bearing Options | Ball Bearing / Sleeve Bearing |
| Lead Wire | UL1007 AWG#26 (Red + / Black -) |
| Weight | 30 g |
| Model | Rated Voltage | Operating Voltage | Current | Power | Speed | Airflow | Air Pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| WD05015#5H | 5V DC | 3.5–5.5V | 0.45A | 2.25W | 5,500 RPM | 4.00 CFM | 11.68 mmH₂O | 41.2 dBA |
| WD05015#5M | 5V DC | 3.5–5.5V | 0.35A | 1.75W | 5,000 RPM | 3.59 CFM | 8.89 mmH₂O | 38.1 dBA |
| WD05015#5L | 5V DC | 3.5–5.5V | 0.25A | 1.25W | 4,500 RPM | 3.19 CFM | 6.86 mmH₂O | 35.1 dBA |
| WD05015#12H | 12V DC | 7.0–13.8V | 0.18A | 2.16W | 5,500 RPM | 4.00 CFM | 11.68 mmH₂O | 41.2 dBA |
| WD05015#12M | 12V DC | 7.0–13.8V | 0.15A | 1.80W | 5,000 RPM | 3.59 CFM | 8.89 mmH₂O | 38.1 dBA |
| WD05015#12L | 12V DC | 7.0–13.8V | 0.12A | 1.44W | 4,500 RPM | 3.19 CFM | 6.86 mmH₂O | 35.1 dBA |
| WD05015#24H | 24V DC | 14–27.6V | 0.10A | 2.40W | 5,500 RPM | 4.00 CFM | 11.68 mmH₂O | 41.2 dBA |
| WD05015#24M | 24V DC | 14–27.6V | 0.08A | 1.92W | 5,000 RPM | 3.59 CFM | 8.89 mmH₂O | 38.1 dBA |
| WD05015#24L | 24V DC | 14–27.6V | 0.06A | 1.44W | 4,500 RPM | 3.19 CFM | 6.86 mmH₂O | 35.1 dBA |
Up to 70,000 hours service life at 20°C
Up to 30,000 hours service life at 20°C
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | Non-condensing |
