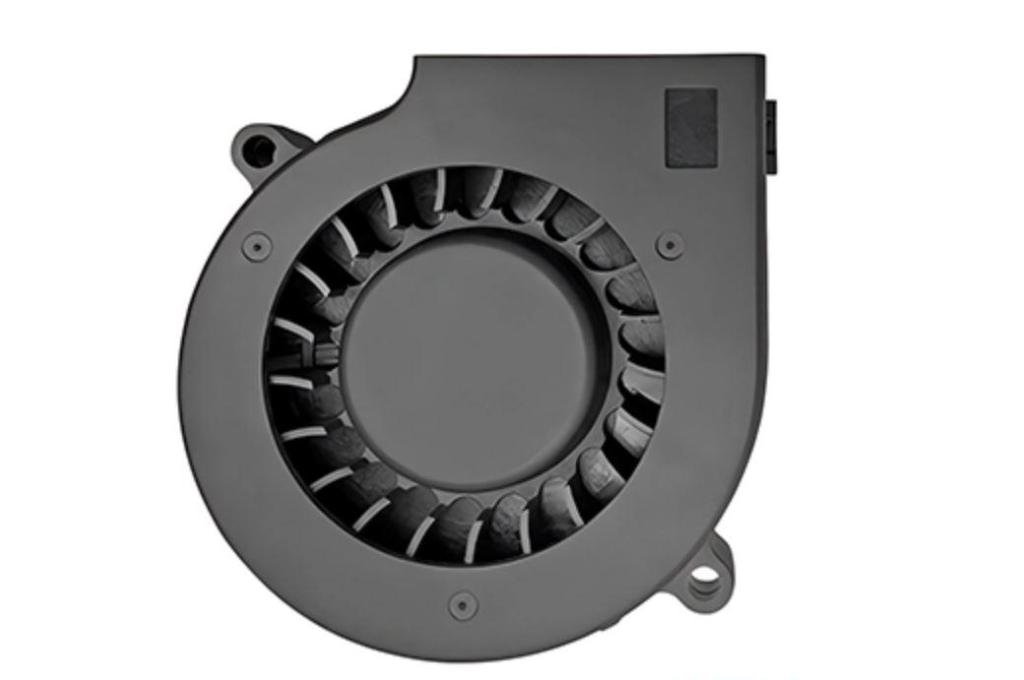

The WELLSUNFAN WD07015 DC Blower Fan is a compact, high-performance brushless DC centrifugal blower engineered for efficient cooling in electronic equipment, industrial automation, medical devices, telecommunications systems, and other applications requiring reliable airflow and high static pressure. With a 70 × 70 × 15 mm slim-profile design, it delivers excellent thermal management while maintaining low power consumption and quiet operation.Manufactured with UL94V-0 flame-retardant plastic, the WD07015 offers exceptional durability and is available with ball bearing or sleeve bearing configurations. It also supports advanced features such as PWM speed control, FG speed monitoring, RD rotor lock detection, and IP56 protection, making it an ideal choice for OEM and industrial applications.
Compact 70 × 70 × 15 mm (2.8 × 0.6 inch) design
High-efficiency brushless DC centrifugal blower
Durable UL94V-0 flame-retardant plastic frame and impeller
High airflow with strong static pressure
Available with ball bearing or sleeve bearing
Long service life of up to 70,000 hours
| Specification | Details |
|---|---|
| Product Model | WD07015 |
| Fan Type | Brushless DC Blower Fan |
| Dimensions | 70 × 70 × 15 mm (2.8 × 0.6 in) |
| Frame Material | UL94V-0 Flame-Retardant Plastic |
| Impeller Material | UL94V-0 Flame-Retardant Plastic |
| Bearing Options | Ball Bearing / Sleeve Bearing |
| Lead Wire | UL1007 AWG#24 (Red + / Black -) |
| Weight | 48 g |
| Model | Rated Voltage | Operating Voltage | Current | Power | Speed | Airflow | Air Pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| WD07015#5H | 5V DC | 3.5–5.5V | 0.62A | 3.10W | 3,600 RPM | 7.40 CFM | 18.80 mmH₂O | 38.6 dBA |
| WD07015#5M | 5V DC | 3.5–5.5V | 0.41A | 2.05W | 3,100 RPM | 6.90 CFM | 14.22 mmH₂O | 36.5 dBA |
| WD07015#5L | 5V DC | 3.5–5.5V | 0.33A | 1.65W | 2,500 RPM | 5.70 CFM | 9.14 mmH₂O | 29.7 dBA |
| WD07015#12H | 12V DC | 7.0–13.8V | 0.34A | 4.08W | 3,600 RPM | 7.40 CFM | 18.80 mmH₂O | 38.6 dBA |
| WD07015#12M | 12V DC | 7.0–13.8V | 0.20A | 2.40W | 3,100 RPM | 6.90 CFM | 14.22 mmH₂O | 36.5 dBA |
| WD07015#12L | 12V DC | 7.0–13.8V | 0.12A | 1.44W | 2,500 RPM | 5.70 CFM | 9.14 mmH₂O | 29.7 dBA |
Bearing Options
Service life up to 70,000 hours at 20°C
Service life up to 30,000 hours at 20°C
| Parameter | Specification |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | Non-condensing |
