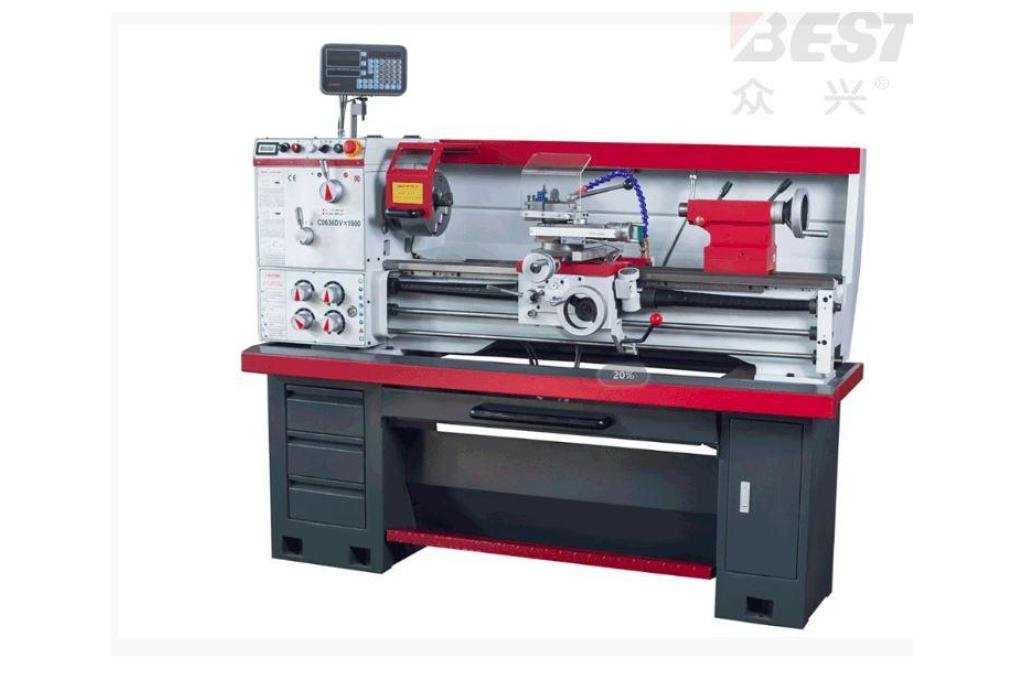

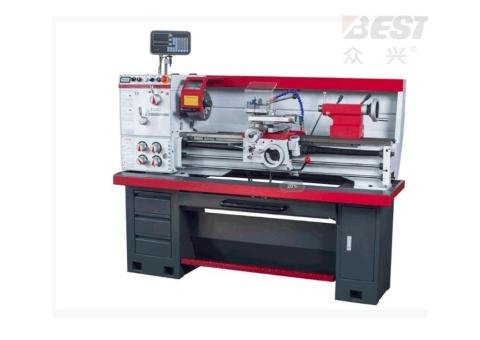

The C6236V Saddle Lathe is a powerful and versatile heavy-duty precision turning machine designed for high-accuracy machining of various metal components. Featuring a rigid bed structure, large spindle bore, variable spindle speeds, and reliable transmission performance, this lathe is suitable for machining shafts, discs, threads, and large-diameter workpieces across multiple industries.
With its extended saddle groove design, the C6236V provides increased turning capacity and improved flexibility, making it an ideal choice for workshops, manufacturing plants, repair facilities, and precision machining applications.
The C6236V Saddle Lathe is widely used for:
General metal turning
Shaft machining
Thread cutting
Precision component manufacturing
Mechanical repair workshops
Industrial equipment maintenance
Heavy-duty machining operations
| Parameter | Specification |
|---|---|
| Model | C6236V |
| Spindle Center Height | 180 mm |
| Maximum Distance Between Centers | 1000 mm |
| Swing Over Bed | 360 mm |
| Swing Over Saddle Gap | 500 mm |
| Saddle Width | 210 mm |
| Bed Width | 187 mm |
| Spindle Bore Diameter | 51 mm |
| Spindle Locking System | D5 Cam Lock |
| Tailstock Sleeve Taper | MT4 |
| Spindle Speed Range | 70–440 rpm / 350–2000 rpm |
| Spindle Speed Type | 2-Range Variable Speed |
| Metric Thread Range | 26 Nos. (0.4–7 MP) |
| Inch Thread Range | 34 Nos. (4–56 TPI) |
| Main Motor Power | 1.5 kW |
| Cooling Pump Power | 40 W |
| Accessory | Specification |
|---|---|
| Three-Jaw Chuck | K11-200 mm / D5 Self-Centering |
| Four-Jaw Chuck | K72-200 mm / D5 Independent Centering |
| Configuration | Gross Weight | Net Weight |
|---|---|---|
| Steel Foot Stands | 655 kg | 550 kg |
| Cast Iron Foot Stands | 765 kg | 660 kg |
Read more
The C6236V Saddle Lathe is a powerful and versatile heavy-duty precision turning machine designed for high-accuracy machining of various metal components. Featuring a rigid bed structure, large spindle bore, variable spindle speeds, and reliable transmission performance, this lathe is suitable for machining shafts, discs, threads, and large-diameter workpieces across multiple industries.
With its extended saddle groove design, the C6236V provides increased turning capacity and improved flexibility, making it an ideal choice for workshops, manufacturing plants, repair facilities, and precision machining applications.
The C6236V Saddle Lathe is widely used for:
General metal turning
Shaft machining
Thread cutting
Precision component manufacturing
Mechanical repair workshops
Industrial equipment maintenance
Heavy-duty machining operations
| Parameter | Specification |
|---|---|
| Model | C6236V |
| Spindle Center Height | 180 mm |
| Maximum Distance Between Centers | 1000 mm |
| Swing Over Bed | 360 mm |
| Swing Over Saddle Gap | 500 mm |
| Saddle Width | 210 mm |
| Bed Width | 187 mm |
| Spindle Bore Diameter | 51 mm |
| Spindle Locking System | D5 Cam Lock |
| Tailstock Sleeve Taper | MT4 |
| Spindle Speed Range | 70–440 rpm / 350–2000 rpm |
| Spindle Speed Type | 2-Range Variable Speed |
| Metric Thread Range | 26 Nos. (0.4–7 MP) |
| Inch Thread Range | 34 Nos. (4–56 TPI) |
| Main Motor Power | 1.5 kW |
| Cooling Pump Power | 40 W |
| Accessory | Specification |
|---|---|
| Three-Jaw Chuck | K11-200 mm / D5 Self-Centering |
| Four-Jaw Chuck | K72-200 mm / D5 Independent Centering |
| Configuration | Gross Weight | Net Weight |
|---|---|---|
| Steel Foot Stands | 655 kg | 550 kg |
| Cast Iron Foot Stands | 765 kg | 660 kg |
