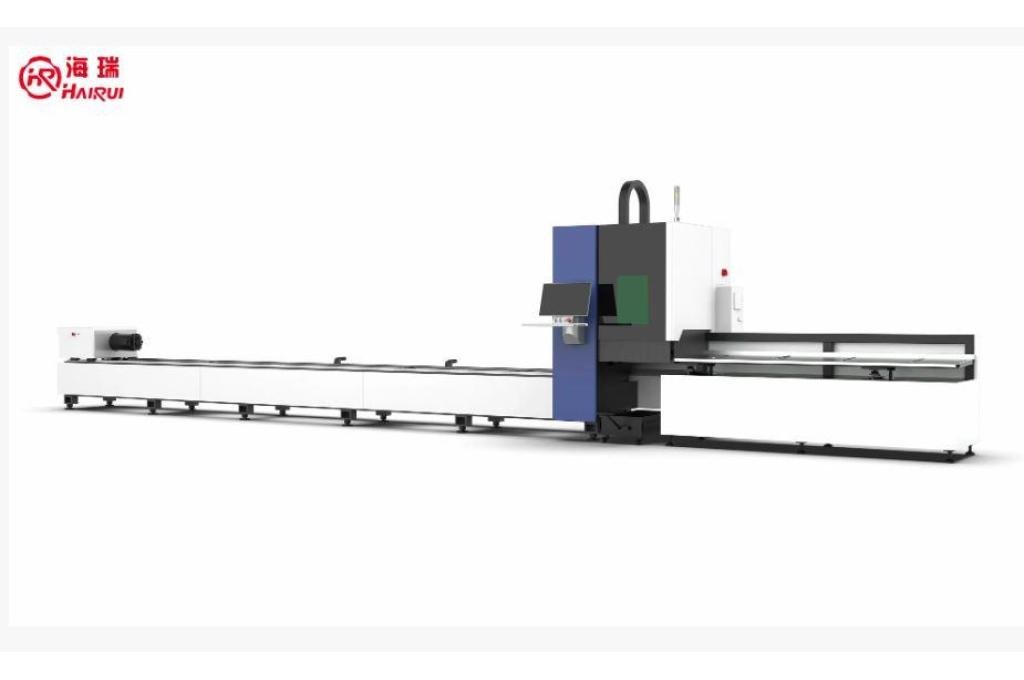

The Hairui HRPFC Laser Cutting Machine for Pipe is a high-precision CNC fiber laser cutting solution specifically engineered for cutting round, square, and various shaped metal tubes. Designed with advanced laser technology, precision machine manufacturing, and intelligent CNC control, the HRPFC series delivers exceptional cutting accuracy, efficiency, and material utilization for modern tube processing applications.
Equipped with a dual self-centering pneumatic chuck, dual-drive transmission, and an innovative push-type pipe cutting system, the machine minimizes material waste by reducing tail length while ensuring stable, accurate, and high-speed cutting. With laser power options from 1.5kW to 20kW, the HRPFC provides an ideal solution for manufacturers requiring reliable and precise pipe processing.
High-precision CNC fiber laser tube cutting system
Designed specifically for round, square, and profile pipes
Dual self-centering pneumatic chucks for stable clamping
Dual-drive system for smooth and accurate positioning
Push-type pipe cutting design minimizes material waste
Short tail material for higher material utilization
High-speed cutting with outstanding edge quality
Intelligent ventilation and dust extraction system
Waste collection trolley for easy cleaning
Compatible with multiple laser source and cutting head brands
Flexible configurations to suit different production needs
Long service life with low maintenance requirements
The HRPFC Laser Cutting Machine is engineered exclusively for industrial tube and pipe processing.
High-precision self-centering clamping
Stable rotation during high-speed cutting
Improved cutting accuracy
Reduced vibration for cleaner cuts
Smoother machine movement
Higher positioning precision
Faster production speed
Enhanced operational stability
| Parameter | Specification |
|---|---|
| Round Pipe Diameter | 15–120 mm / 15–230 mm / 20–350 mm |
| Square Pipe Size | 15–120 mm / 15–230 mm / 20–350 mm |
| Effective Cutting Length | 6300 / 12300 mm |
| Minimum Tail Length | 40 / 70 / 120 mm |
| X-Axis Travel | 150 / 260 / 380 mm |
| X-Axis Rapid Speed | 120 m/min |
| Y-Axis Travel | 6500 / 12500 mm |
| Y-Axis Rapid Speed | 120 m/min |
| Z-Axis Travel | 100 / 150 / 200 mm |
| Z-Axis Rapid Speed | 30 m/min |
| W1/W2 Rotation | 360° Infinite Rotation |
| W1/W2 Rotation Speed | 120 rpm |
| X-Axis Positioning Accuracy | ±0.03 mm |
| X-Axis Repeat Accuracy | 0.02 mm |
| Y-Axis Positioning Accuracy | ±0.03 mm |
| Y-Axis Repeat Accuracy | 0.02 mm |
| Z-Axis Positioning Accuracy | ±0.01 mm |
| Z-Axis Repeat Accuracy | 0.005 mm |
| W1/W2 Positioning Accuracy | ±0.03° |
| W1/W2 Repeat Accuracy | 0.02° |
| Laser Power | 1500–20000 W |
| Protection Grade | IP54 |
| Power Supply | 3×380V / 400V / 415V, 50/60Hz |
| Machine Color | RAL 5015 Sky Blue or Customized |
