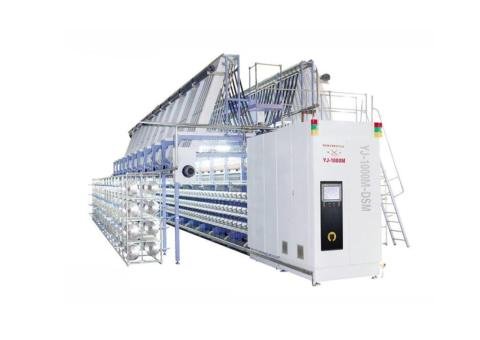

MODEL YJ1000M-DSM HIGH SPEED DRAW-DOUBING SPINDLE TEXTURING MACHINE

MODEL YJ1000M-DSM High-Speed Draw-Doubling Spindle Texturing Machine

The MODEL YJ1000M-DSM High-Speed Draw-Doubling Spindle Texturing Machine is an advanced textile processing machine designed for efficient polyester and polypropylene yarn texturing. With spindle configurations of 240, 264, 288, and 312 spindles, it combines high-speed draw texturing with doubling and spindle-based twisting to produce low-, medium-, and high-stretch DTY yarns, including S and Z twist applications.

Its maximum mechanical speed reaches 1000 m/min, while the Type 8 disc friction unit provides stable and consistent twisting performance. The machine features biphenyl heating technology, independently controlled processing on both sides, and an advanced touchscreen electrical control system for convenient operation and precise process adjustment.

Key Features

• High-speed operation: Maximum mechanical speed of 1000 m/min for efficient yarn processing.

• Multiple spindle configurations: Available in 240, 264, 288, and 312 spindle options.

• Advanced friction twisting: Type 8 disc friction unit supports stable and consistent yarn texturing.

• Wide yarn range: Processes fibers from 55–250 dtex, with S+Z configurations available.

• Biphenyl air heating: First and second heaters provide controlled and uniform thermal treatment.

• Precise temperature control: Temperature accuracy of approximately ±1°C, supporting consistent yarn quality and more even dyeing.

• Independent two-side operation: Each side can be configured separately, allowing different yarn types and deniers to be processed simultaneously.

• Touchscreen control: User-friendly man-machine interaction simplifies operation and process adjustment.

• Large package capacity: Take-up package size reaches φ250 × 330 mm.

• High production efficiency: Designed for continuous, high-output draw-doubling texturing applications.

Main Technical Specifications
