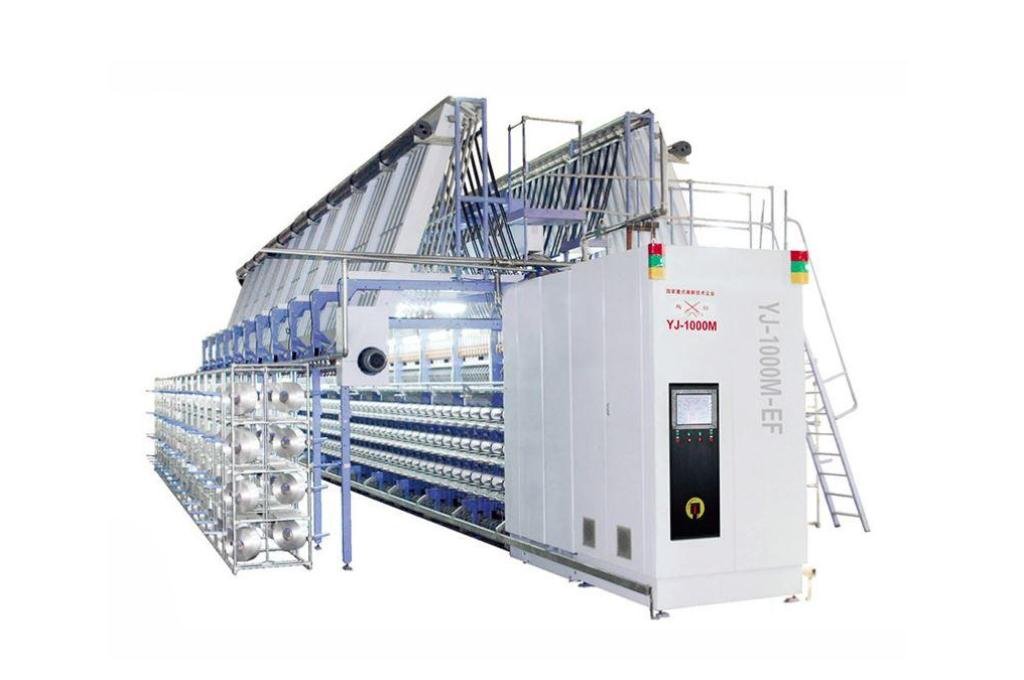

MODEL YJ1000M-EF HIGH SPEED DRAW TEXTURING MACHINE WITH SPANDEX FEEDING DEVICE

MODEL YJ1000M-EF High-Speed Draw Texturing Machine with Spandex Feeding Device

The MODEL YJ1000M-EF High-Speed Draw Texturing Machine with Spandex Feeding Device is an integrated textile processing solution designed for high-speed polyester draw texturing and spandex air covering. Available in 264, 288, and 312 spindle configurations, the machine converts polyester POY into high-stretch DTY yarn through controlled heating and texturing, followed by integrated spandex air covering. Its integrated design helps reduce energy consumption, improve yarn quality and production stability, and minimize machine component wear.

Key Features

• High-speed operation: Maximum mechanical speed of 1,000 m/min.

• Integrated spandex feeding: Dedicated single-motor spandex feeding device with an automatic stopping function.

• Double W2 roller structure: Helps improve the quality and consistency of polyester and spandex air-covered yarn.

• Independent roller drives: W1, W2.1, W2.2, and W3 rollers are individually motor-controlled.

• Direct main transmission: Belt-free direct transmission improves reliability and reduces mechanical losses.

• S and Z switching: Center belt transmission enables convenient switching between S and Z twisting directions.

• Precision heating: Diphenyl air-heated deformation and setting heaters provide temperature control accuracy of ±1°C, supporting uniform dyeing performance.

• Advanced oiling system: Single-piece roller-type oiling provides consistent and even yarn lubrication.

• Touchscreen control: An advanced electrical control system simplifies operation, monitoring, and process adjustment.

• Low-noise operation: Reliable transmission and a straightforward mechanical design support stable, low-noise production.

• Fume exhaust system: Exhaust systems on both sides help remove fumes generated during production.

• Online tension control: Additional warming spindles, W1.2, and online tension devices help improve yarn processing stability.

• Manual string-up system: Facilitates convenient yarn guiding and threading.

Main Technical Specifications
