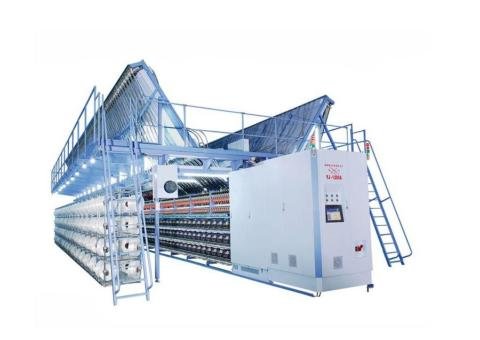

MODEL YJ1200A High-Speed Electron-Controlled Draw Texturing Machine

The MODEL YJ1200A High-Speed Electron-Controlled Draw Texturing Machine is a high-performance DTY draw texturing machine designed for efficient processing of polypropylene fiber into low-, medium-, and high-stretch textured yarn. With a maximum mechanical speed of 1,200 m/min, the machine combines high-speed operation, precise electronic control, and stable yarn processing to support demanding textile production environments.

Available in 240, 264, 288, and 312 spindle configurations, the YJ1200A can be equipped with either a Type 8 or Type 7 disc friction unit. Its electronically controlled heating system provides accurate temperature regulation, helping maintain consistent yarn quality across spindles and supporting more uniform dyeing results.

Main Technical Specifications

Applications

The YJ1200A DTY machine is primarily designed for processing polypropylene fiber through controlled twisting and texturing to produce low-, medium-, and high-stretch textured yarn. When equipped with an intermingling nozzle, the machine can also produce intermingled yarn.

Its high-speed configuration makes it suitable for textile manufacturers looking for efficient polypropylene yarn texturing, DTY production, and high-volume yarn processing.

Key Features

High-Speed Texturing

The YJ1200A operates at a maximum mechanical speed of 1,200 m/min, enabling efficient production and high machine utilization.

Independent Two-Side Operation

The two sides of the machine are relatively independent, allowing production parameters to be set separately. This makes it possible to process different types and deniers of textured yarn simultaneously.
